PHANTOM® X-SERIES

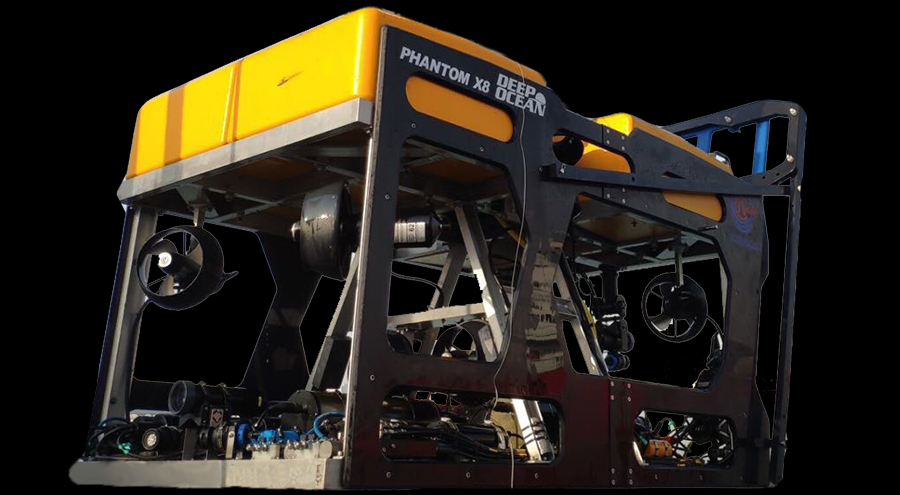

The Phantom® X-Series is an electric, light work-class, vehicle that packs a robust design for deep sea maneuverability and power. Configured with six vectored horizontal and two vertical Tecnadyne brushless thrusters, the Phantom® X8 has complete control and authority in any given direction, even in the toughest currents.

It is hand-built on a rugged, resilient, non-corroding polypropylene chassis over an aluminum frame that accommodates heavier payloads and allows the integration of a wide variety of sensors and upgrades. Designed with offshore operations in mind, the Phantom® X-Series is adaptable for various underwater tasks in any condition.

Applications for the X-Series include pipeline inspection/routing, offshore wind farm maintenance, infrastructure repair, survey, research and many more.

PHANTOM® X-SERIES TECHNOLOGY


The advanced technology of the Phantom ® X-Series ROV platform provides powerful maneuverability, incorporates an open architecture, integrates with a wide variety of sensors and is hand-built on a rugged, resilient, non-corroding polypropylene chassis over an aluminum frame that can accommodate heavier payloads.

  • Salient Features
  • Hardware & Software
  • Options available
  • Thrusters
  • Weight & Size
  • Specifications

Salient Features

  •  Powerful maneuverability
  •  Incorporates an open architecture
  •  Integrates with a wide variety of sensors
  •  Hand-built on a rugged, resilient, non-corroding polypropylene chassis over an aluminum frame
  •  Chassis accommodates heavier payloads

Hardware and Software

  •  HD camera (1920x1080) standard with rear fixed camera
  •  Capable of white balance and advanced image adjustments
  •  Front mounted on mechanical pan/tilt unit =(+/-90°)
  •  3 Front facing LED lights (30,000 lumens)
  •  Adjustable LED brightness controlled by the handheld pilot box or GUI software with integrated video recorder and stills capture

Options available

  •  Control van
  •  Additional Cameras & Lights
  •  Sonars
  •  Navigational software (Greensea)
  •  Umbilical (900m standard)
  •  Manipulators
  •  Launch and Recovery System

Thrusters

  Configuration 6 vectored horizontal, 2 vertical
  Forward Thrust 588kgf (1296 lb)
  Vertical Thrust 198kgf (437 lb)
  Thrusters 2.2 kW Tecnadyne magnetically-coupled brushless

Weight & Size

  Weight in Air 1200 kg (2646 lbs)
  Length 2451 mm (96.5 in)
  Width 1420 mm (55.9 in)
  Height 1448 mm (57 in)
  Depth rating 850 m working depth
