THE PHANTOM® I-1650 USV

A POWERFUL 1.65M REMOTE CONTROLLED BOAT

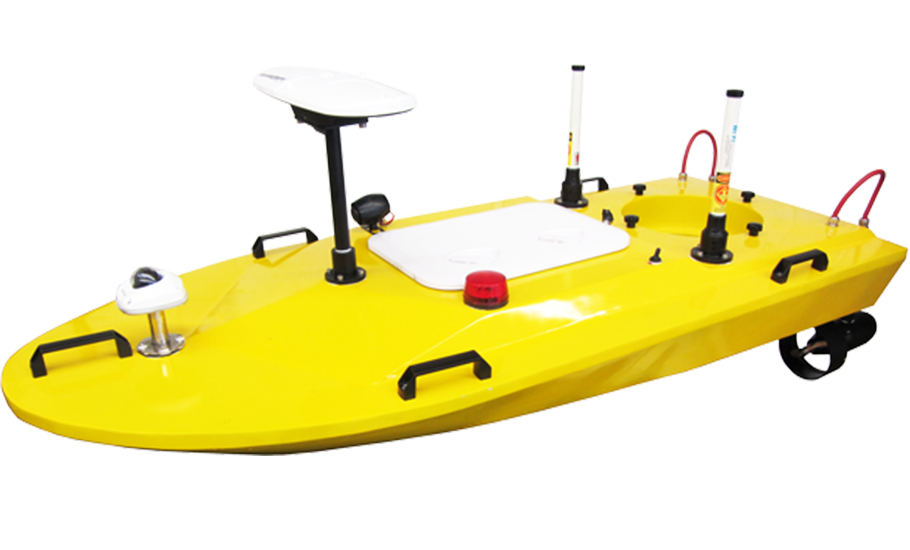

The Phantom® I-1650 USV is a powerful, 1.65m, remotely controlled, battery-powered unmanned surface vessel designed and manufactured by Deep Ocean Engineering to conduct measurements of currents, bathymetry and discharge with ADCPs (Acoustic Doppler Current Profilers).

The Phantom® I-1650 USV TECHNOLOGY


The Phantom® I-1650 USV is a powerful, 1.65m, remotely controlled, battery-powered unmanned surface vessel designed and manufactured by Deep Ocean Engineering to conduct measurements of currents, bathymetry and discharge with ADCPs (Acoustic Doppler Current Profilers).

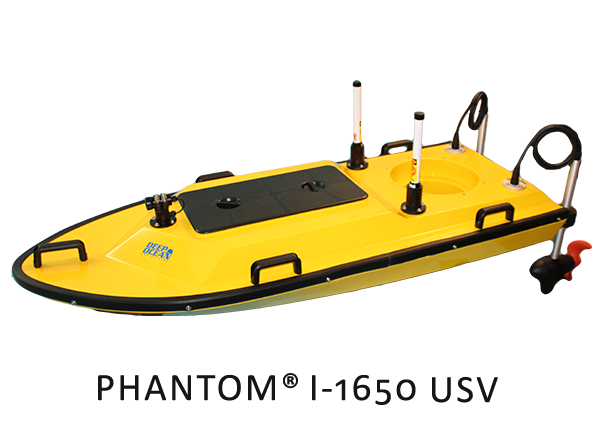

Phantom I-1650 USV


GPS Applications

Wide Range of third party GPS applications.

Siren

HD Camera

Real time forward looking wide angle HD camera

Flashing Light

Flashing light for low light visibility or security purposes

MOON POOL

Moon pool for easy integration of ADCPs, eschounders or other third party sensors.

Chassis

Carbon Fiber or Non Corroiding Aluminium Array

  • Salient Features
  • Hardware & Software
  • Application
  • Thrusters
  • Weight & Size
  • Specifications

Salient Features

  •   Utilizes 2 Torqueedo thrusters
  •   Range of up to 2km distance with RC (extended with mission planning software and GPS)
  •   Spacious and accessible electronics compartment
  •   Portable and easily deployable vessel
  •   Hand-built with a rugged, lightweight hull constructed of carbon fiber
  •   One-year manufacturer’s warranty

Hardware and Software

  •   IP HD camera
  •   Ethernet and serial channels
  •   Modular design
  •   Integrated moon pool for sensor integrations

Application

  •   Water quality surveys in contaminated waters
  •   Bathymetry
  •   Discharge monitoring
  •   Scientific research
  •   Lake and river surveys
  •   Harbor inspections
  •   Port security

Thrusters

  Top Speed 1.8m/s (4mph)
  Survey Speed 1.3m/s (2.9mph)
  Payload 20kg (44lbs)
  Battery Life @ Top Speed 1.5hrs +
  Battery Life @ Survey Speed 4hrs +

Weight & Size

  Weight 36kg (80 lbs)
  Length 1650mm (5.41ft)
  Width 695mm (2.28ft)
  Chassis Carbon Fiber or Non-Corroding Aluminum Alloy

Specifications
